Ionizer
- Minimize PCB damage by keeping ion balance below ±10V
- Bar type
- Brand: PANASONIC
Marking Grade
- Measuring the barcode and grade marked on PCB
- Able to provide the results to a file that the customer wants
Marking Power Detector
- Automatically checks laser power after certain marking
cycles set by the operator.
- An alarm notification will appear if the power is measured to be lesser that the parameter set.
- Marking power and settings should be readjusted in program recipe.
- Operator may also check the power manually
- Since the detector and the Laser PC are connected, it can be directly controlled on the Laser Machine program.
3 Color LED
- Red, Green, and Blue for color settings
- LED color can be set by model
HASL Fiducial Recognition
- Fiducial recognition before marking
- Compare to the previous camera, it has a higher resolution and additional lighting(brightness) adjustment function.
- Camera Brand: Basler
Width Synchronization
- via RS-232

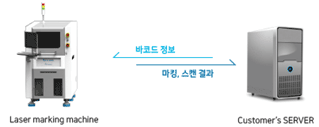

MES System
- Manufacturing Execution System(MES) Communication
- LAN (TCP or UDP)
- Datebase Access
- File Read / Write
- MES protocols and flow charts should be provided from customer.
Color
- ESD Powder coating (RAL 7035)
